A Hazard Hiding in Plain Sight
During investigations of alleged sudden vehicle accelerations and stuck throttles, Transport Canada has frequently found that the problem relates to interference between vehicle floor mats and the pedals, typically occurring when non-original equipment floor mats are used without being properly retained to the vehicle floor. The floor mat can then move under the driver’s feet and become lodged between the pedals, on top of them, or underneath them.
If the driver’s mat moves far enough out of position, it can end up on top of or underneath the gas or brake pedal. A floor mat resting on top of the gas pedal can cause the pedal not to release when the driver lifts their foot. That split-second failure to release is all it takes to cause a crash.
The Recalls That Shocked the Industry
In October 2009, Toyota recalled 3.8 million vehicles for pedal entrapment by floor mats and sent an interim letter to consumers instructing them to remove their floor mats. The scale of the recall was unprecedented for a cause as seemingly mundane as a loose mat.
The two mechanical safety defects identified by NHTSA were sticking accelerator pedals and a design flaw that enabled accelerator pedals to become trapped by floor mats, and Toyota ultimately recalled nearly 8 million vehicles in the United States for these two defects.
The agency confirmed that five individuals, in two separate incidents, died as a result of pedal entrapment in the recalled vehicles. The human cost behind those numbers is what finally forced sweeping action.
The 2009 San Diego Tragedy That Changed Everything
In the case of the highly publicized crash of a Lexus that sped along a California freeway before overturning, burning, and killing all four occupants, a trapped accelerator pedal is thought to have been compounded by the driver not knowing how to turn off the engine in a car with a push-button start.
With the defective Toyota vehicles, there were hundreds of crashes caused by stuck acceleration pedals that are believed to have resulted in 89 deaths and dozens of injuries, including traumatic brain injury, spinal cord injury, burn injuries, and amputations.
Two years before the fatal accident that prompted Toyota to warn 3.8 million American car owners to remove floor mats, another driver died in a crash also suspected of being caused by a floor mat jamming an accelerator. These were not isolated events but part of a pattern that had been building for years.
How Thick Aftermarket Mats Make Things Worse

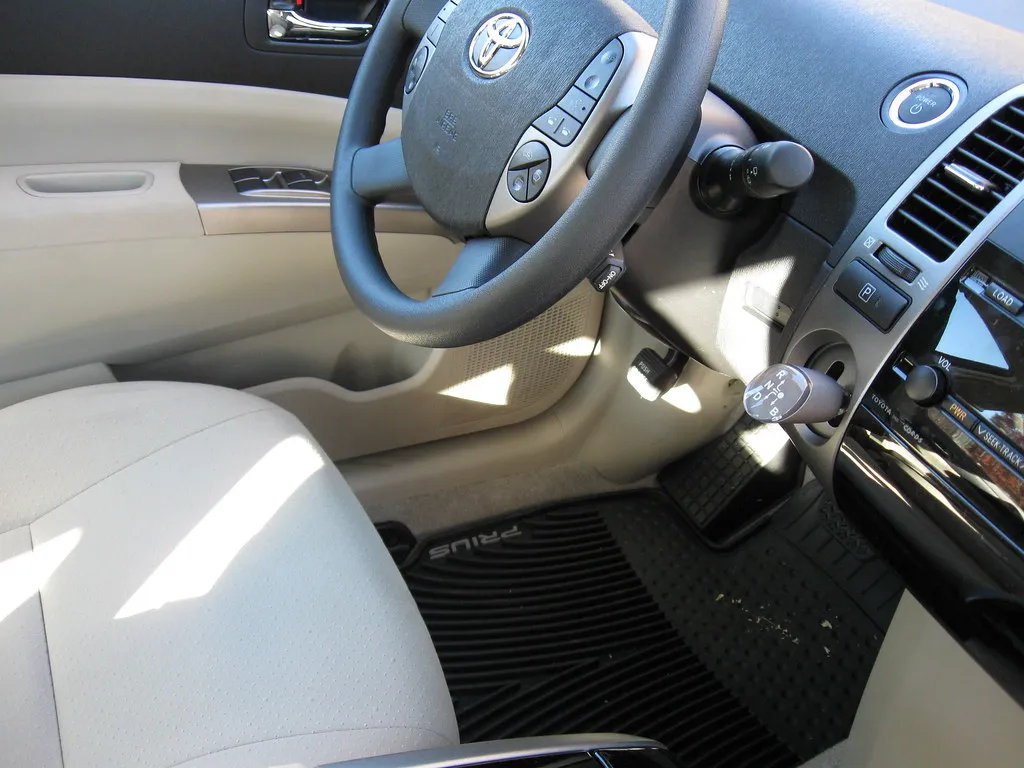

Some aftermarket honeycomb mats are thicker and heavier than normal floor mats, with thickness measured at about 1.5 cm, roughly two times larger than a typical value. These kinds of floor mats are not provided with the car when it is purchased but are readily available in the market.
Pedal entrapment is thought to be more likely to occur when using a thicker mat improperly. NHTSA testing confirms that mats exceeding half an inch in thickness at the toe area, particularly those with rigid backing or tapered leading edges, pose elevated risk on vehicles with less than 1.25 inches of vertical clearance between the pedal pad and floor pan.

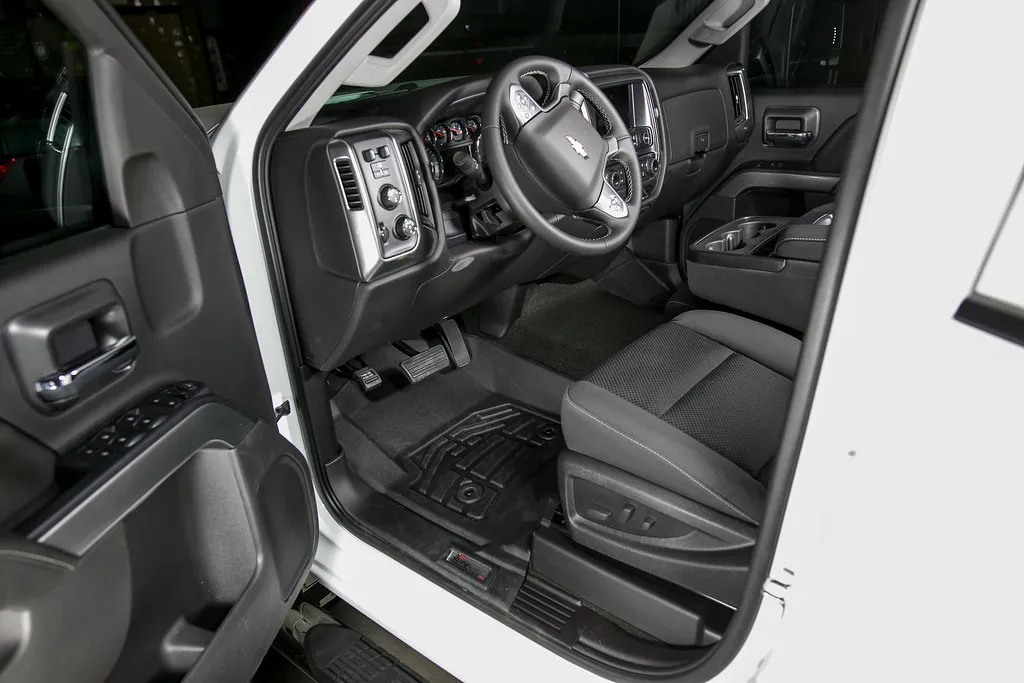

Stacking Two Mats Is an Often-Overlooked Risk
When floor mats are improperly installed in nearly any vehicle, or when heavy winter floor mats are stacked on top of the carpeted mats, they can prevent the accelerator pedal from returning to idle. This is an especially common mistake as seasons change and drivers simply add a rubber mat on top of the existing fabric one.
If you tend to install rubber mats in winter, be sure to first remove the original fabric mats so that you leave enough clearance for your pedals to fully depress without contact. Never stack two mats in the same footwell, as the combined height significantly increases pedal contact risk.
Why the Driver’s Side Mat Moves Forward in the First Place
Repeated foot pressure during normal driving pushes the mat forward incrementally. Placing the foot on the floor and pivoting toward the pedals contributes to this movement, as does getting in and out of the vehicle. Mats without mechanical retention, or those that do not fit the footwell closely, are most affected.
A mat slide refers to the unintended forward displacement of a driver-side floor mat during vehicle operation, resulting in physical interference between the mat and the accelerator pedal assembly. It can happen gradually over days, or in a single hard braking event.
The Role of Pedal Geometry
Mat slides are preventable, but only when drivers understand the mechanical interplay between mat thickness, pedal clearance, retention systems, and vehicle-specific mounting points. Not every car shares the same vulnerability, but the risk is real across a wide range of makes and models.
All but one of the eight models that NHTSA had identified in its Toyota investigation were designed with 10 millimeters or less of clearance between a fully depressed accelerator pedal and the vehicle floor. That narrow margin leaves almost no room for an errant mat to pass without causing interference.
What the Retention Clips Are Actually There For
To combat this concern, original equipment floor mats in late-model vehicles are secured in place with some type of retainer. However, these retainers can become loose or damaged, or floor mats without retainers can be installed in any vehicle.
An unsecured or incompatible driver-side mat can shift into the pedal clearance zone and obstruct brake or accelerator operation, a risk NHTSA has confirmed across all vehicle types. A properly fitted, correctly anchored mat presents no such risk. The distinction is retention, not the mat itself.
Be sure to lock your mats in place using the floor mat locks that came with your vehicle. If those locks are missing or broken, replacing them is a minor expense that could prevent a major outcome.
How to Check Your Own Mats Right Now

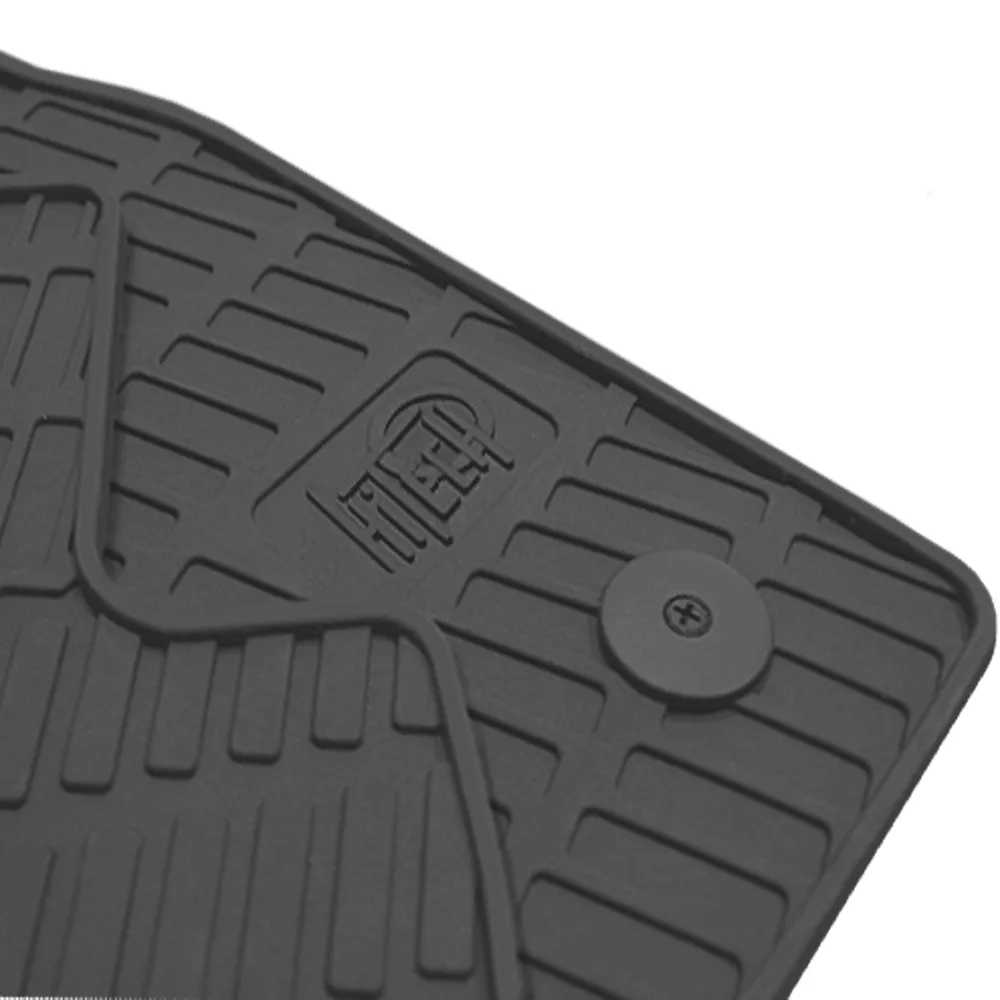

After installation, slide the driver mat fully into place and press it down at the retention points. Then move your foot through the same path you use for the accelerator and brake pedals. The mat should not lift, bunch, or move forward. This is not a cosmetic detail.
After installation, press each pedal through its full range of motion to ensure there is no interference. A practical monthly check involves sliding a business card beneath the accelerator pedal while fully depressed. If it moves freely without resistance from the mat, clearance is adequate.
It is also worth replacing mats every six years, as rubber and TPE degrade under UV exposure and thermal cycling. Cracking or warping increases entrapment risk even when the mat still looks serviceable.
What Automakers and Regulators Now Require
Toyota later paid nearly 33 million dollars in civil penalties as the result of investigations into whether the company notified NHTSA in a timely manner about these defects. Regulatory pressure following the Toyota cases reshaped how automakers design and communicate floor mat safety standards.
Officials called on drivers not to use improper mats and pushed Toyota to take action in the form of recalls. This included changing the pedal design and installing a brake override system. Brake override systems, which automatically reduce engine power when the brake and accelerator are pressed simultaneously, became increasingly standard following these events.
OEM mats often use hooks, clips, or Velcro to secure the mat in place, while aftermarket mats without compatible retention systems are more likely to slip. Always verify that any replacement mat is explicitly certified as compatible with your specific vehicle model before purchasing.
The Simple Fix Most Drivers Never Make

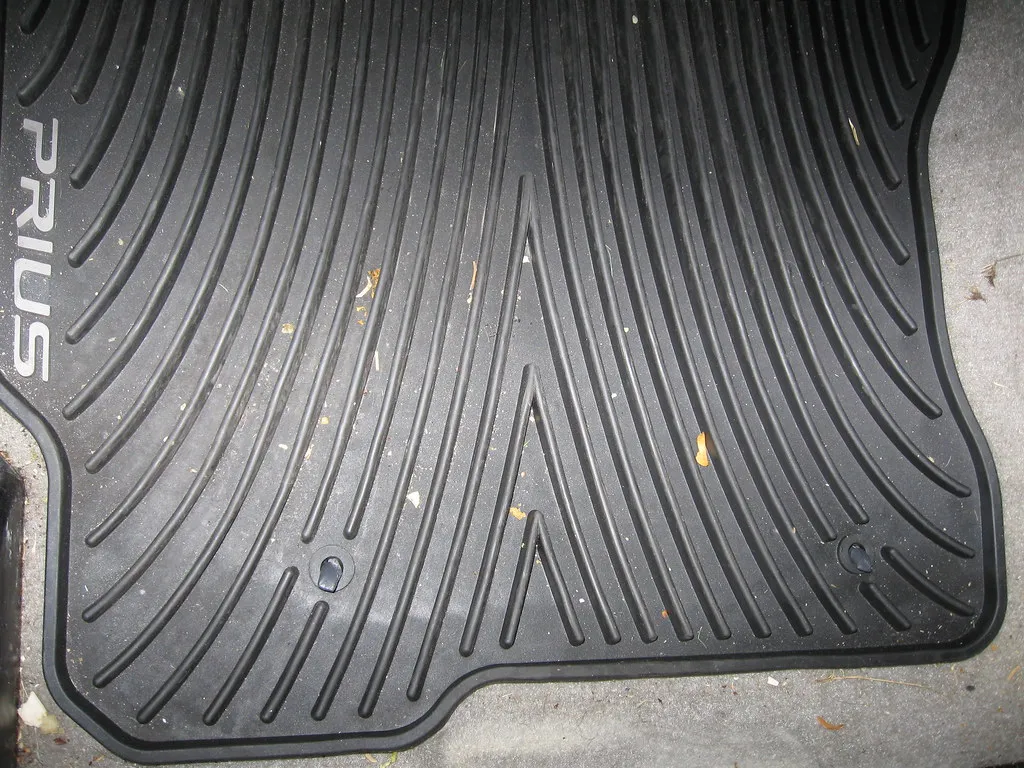

The primary cause of mat-related entrapment is a design mismatch between aftermarket or ill-fitting all-weather mats and pedal geometry that allows forward migration under foot pressure or vibration. Verified solutions include using only OEM-specified mats, installing retention hooks, and routinely checking mat positioning before every drive.
Many drivers do not realize that an ill-fitting or unsecured mat can transform from a protective accessory into a dangerous obstacle. NHTSA has issued recalls and safety advisories specifically addressing floor mat-related incidents. The fix requires no tools and takes under a minute.
Periodically check that the mat remains securely anchored and has not shifted or curled at the edges. That habit, practiced consistently, is the difference between a floor mat doing its job and becoming the last thing a driver has to worry about.
Final Thoughts
Floor mats rank among the least glamorous parts of a car, yet the evidence from government investigations, corporate recalls, and real crashes makes one thing clear: placement matters enormously. The fix costs nothing if you act before the mat moves. It costs everything if you wait until it already has.
Check your mats today. Engage the retention clips. Do not stack them. These are small, unglamorous actions, but they are the kind that keep ordinary drives from becoming emergencies.
